No-contact measurement
Sits above the water and measures the echo returning from the surface—no submerged probe to place or retrieve.
Monitor smarter. Visit less.
Know your groundwater level.
Without going underground.
The Ground water level sensor (SSD009) turns every monitoring pipe into a connected source of insight—automatically measuring water depth and sending it to your phone and cloud dashboard.
Cellular LTE-M Cloud connected
Battery poweredNo mains required
Non-contactNo submerged probe
Live monitoring
Water depth LIVE
2.50 m
From
excl. VAT
01Install above waterNo sensor cable to lower
02Measure automaticallyAcoustic echo technology
03Connect from anywhereApp and cloud access
04Act with confidenceHistorical trends at a glance
One small sensor. A clearer water story.
Turn field visits into forward decisions.
Replace manual spot checks with a connected view of groundwater conditions. GWL sensor helps teams see change sooner, document trends and focus field time where it matters.
Data, delivered
Integrated Cellular LTE-M send measurements to the cloud, bringing remote sites into one accessible view.
Freedom from mains
A replaceable lithium battery makes the sensor practical for remote wells and sites without external power.
See the full trend
Review live values and historical data to spot movement, support reporting and make earlier interventions.
Simple by design
From echo to insight in three steps.
The clever part happens inside the sensor. Your team gets the result.
Acoustic
sensing
Cloud
synced
Send
The sensor generates an acoustic tone down the groundwater pipe.
Measure
The returning echo is analysed to calculate distance to the water surface.
Connect
The measurement travels over cellular connectivity for app and cloud access.
GWL Sensor dashboard
Your groundwater network, in one view.
Move from scattered readings to a shared operational picture. Check current depth and device health, then explore historical patterns for analysis and reporting.
1 year included Cloud service
(portal)
1 year included SIM card service
- See the latest depth and battery reading per device
- Compare parameters across a chosen date range
- Review and export historical sensor reports

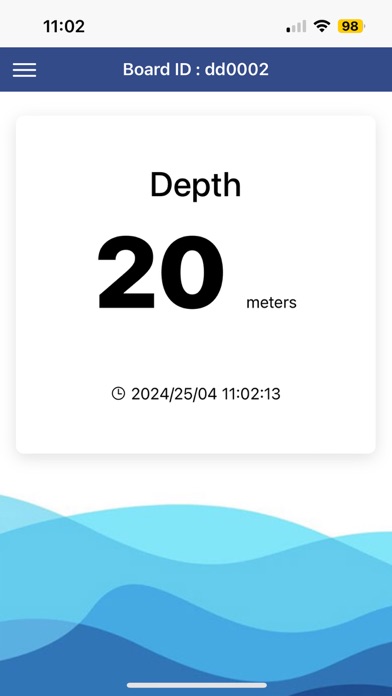

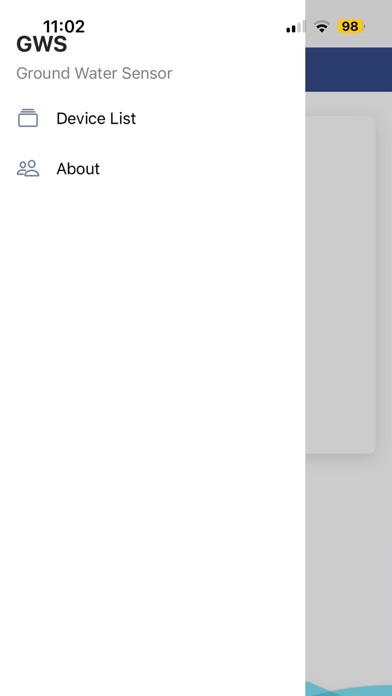

GWL mobile app
The reading you need,
The reading you need,
right in your pocket.

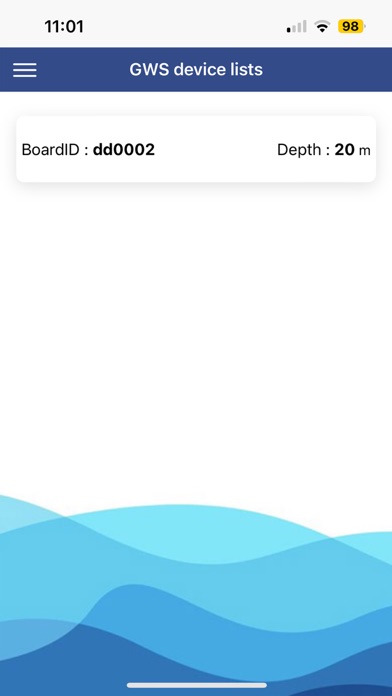

Scan for a nearby GWL sensor, identify the device, and read its current groundwater depth.
Download on theApp Store
Built for the field
One platform. Many decisions.
Whether you manage one monitoring point or a distributed network, GWL keeps the information close and the hardware out of the water.
AGRICULTURE
Protect irrigation decisions with a clearer view below the surface.
Follow groundwater movement across seasons and plan field activity with better context.
CONSTRUCTION
Track site conditions
Document groundwater level changes through active projects.
ENVIRONMENT
Build stronger records
Collect consistent readings for long-term programmes.
MUNICIPAL WATER
See assets together
Bring distributed monitoring points into one dashboard.
RESEARCH
Keep field data flowing
Review measurements remotely between planned visits.
GWL Sensor · SSD009
IN THE BOXSSD009 sensor + battery
lead
Ready to monitor
GWL Sensor SSD009
A compact, battery-powered groundwater level sensor for non-contact level measurement, local BLE access and cloud connectivity via Cellular LTE-M .
excl. VAT
- 1 year included Cloud service (portal)
- 1 year included SIM card service
- Non-contact acoustic depth measurement
- LTE-M cellular connectivity
- Bluetooth Low Energy local communication
- Replaceable CR123A lithium battery support
- GWL mobile app access
Shipping, applicable taxes and renewal terms after the included first year are confirmed with your order.
Product details
Technical enough.
Simple to act on.
Need the engineering detail? Download the SSD009 datasheet or review the essential specifications here.
ModelSSD009
Measured parameterGroundwater level / distance to water surface
Measurement principleAcoustic echo measurement
Measurement approachNon-contact, from above the water surface
Sensor componentsIntegrated speaker and microphone
Cloud connectivityLTE-M
Local communicationBluetooth Low Energy
Power supply3.0 V lithium battery
Recommended batteryCR123A, approximately 2800 mAh
Cellular modemNordic Semiconductor nRF9160
Frequently asked
Good questions.
Straight answers.
No. SSD009 measures from above the water surface using an
acoustic tone and its returning echo. It does not require a
submerged probe.
No. The unit runs from a replaceable 3.0 V lithium battery;
the product specification recommends a CR123A battery of
approximately 2800 mAh.
The integrated cellular modem supports Cellular LTE-M for
cloud transmission. Bluetooth Low Energy is also available for
local communication.
The dashboard provides current readings and battery status,
plus historical reporting by device, parameter and date range
for ongoing review and analysis.
Yes. One year of GWL Cloud portal service and one year of SIM
card service are included with your SSD009 purchase. Renewal
options after the included first year are confirmed with your
order.
The next reading can come to you
Make groundwater level visible.
Start with SSD009 and build a clearer, connected view of what is happening below.
